Wednesday, November 22, 2023

Mushrooms

    I think the mushrooms are about ready now. Basically, I made 3 different types and mapped them all to one set of 512x512 textures. One limitation that I realized later on is that it's difficult to get per-mushroom texture variations when all 3 of them are on one texture sheet. Since they're fairly small, I'll leave them as-is for now. I may look into adding more variations later though.







    Now it's time to start on the turtle. I haven't modeled any animals before, so I think this will be a great new challenge. Rigging it will also be fun, and it should add some nice extra life and movement to the scene.


Monday, October 9, 2023

Turtle Stone Sculpture

     I think the stone sculpture is about ready. While I'm considering more material edits, I'll move on to the mushrooms next so I can continue populating the scene.






     There are a few different brushes recommended in the foliage class that I tried out to add a stone look to the sculpture. One of them is Trim Smooth Border. It's a great brush for adding edge damage because it can quickly flatten out any areas that you paint on.




     I also tried out a variety of rock brushes to add cracks and overall texture.

        Dannie Carlone Brushes

        Orb Brush Pack

        Paul Tosca Brushes

    Aside from the sculpt, I experimented with using a material mask to texture the sculpture. In the mask, I painted black for normal stone, red for darker stone, and green for moss. One plus of this method is that the textures are tiled, so it's easier to get a high resolution as opposed to a 0-1 map. I could also reuse this material for other stone assets. As mentioned earlier, I still would like to revisit this later to get more variation, but I think it will work for now.




    Finally, one more thing that I experimented with is Nanite. It allowed me to go fairly high poly with the mesh without using too much memory. In this case, I opted to go to around 40,000 triangles with a baked normal map. All the content for the asset took up about 4.4 MB. I also imported a 150,000 triangle mesh which took up 9.6 MB. Since I felt like the former looked about as good as the higher poly one, I went with that.

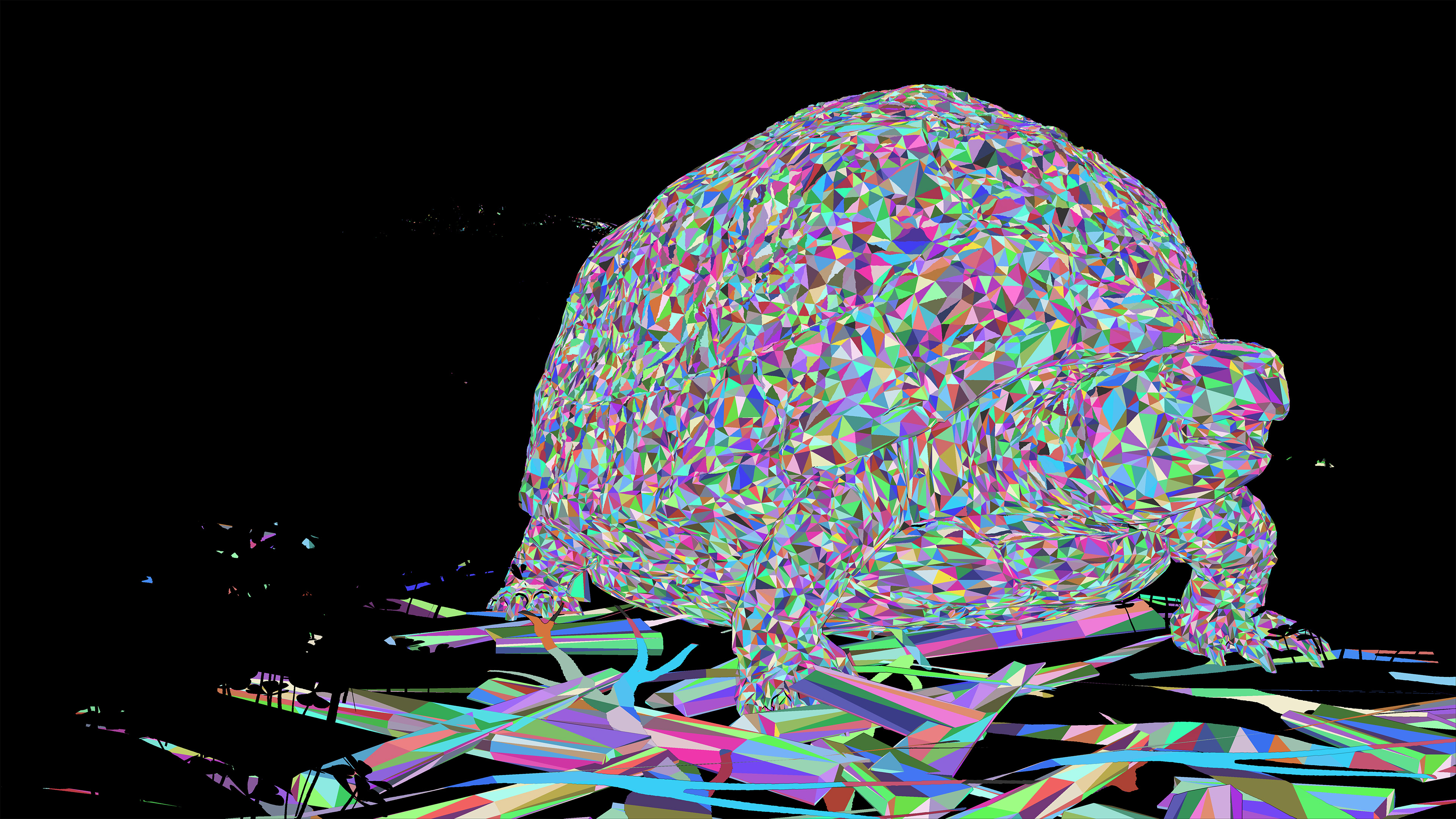

Nanite visualization.

    Additionally, I used Nanite displacement to add some height to the mossy areas. It took me a little while to figure out. I eventually found that I needed to edit the displacement settings in the details panel. To make sure the moss only pushed the mesh out and didn't go inwards, I set the center to 0.


    Next it's time for the mushrooms. They should be some more good sculpting practice, and hopefully they'll add some interesting variation to the ground.



Wednesday, August 30, 2023

Turtle Sculpt Progress

     I think the base sculpt is about ready now. Next I'm going to modify this to create a stone sculpture of the turtle.






    One technique that helped out was stamping shell alphas with the Standard brush and DragRect. To do this, I made some simple outlines from top and bottom, loaded them as alphas, and then dragged them onto the shell. Once the basic outlines were stamped, I used Trim Dynamic and Pinch to further refine the shapes.


    Another thing that helped was setting the focal shift to -100. Typically the alpha had a soft falloff to it when I stamped, so lowering the focal shift allowed me to stamp it with full intensity.


    Overall, I think the turtle is off to a decent start. Once I'm finished with the stone sculpture, I'm going to revisit the original and make a live version.


Tuesday, August 15, 2023

Turtle Model

    I've started modeling a box turtle. There are two main uses that I have in mind for it. For one, I want to create a stone sculpture with it. After that, I would like to make some animated turtles. To do this, I'm going to create a base model that's as accurate as possible and then modify it for these two purposes.

    So far, I've created a block out and started sculpting it in ZBrush. Next I'm going to work on matching the legs and claws to my reference images. After that, I will sculpt in some textural details, such as scales and the patterns on the shell. Hopefully this works out. I think the turtle will add a little more life to the scene.


The block out mesh.

Current progress on the sculpt.



Sunday, August 6, 2023

Lighting and Set Dressing Edits

     I've started on some revisions to the foliage scene. So far, I've mainly edited the lighting and worked on some debris meshes to add more height variation to the ground.












     I also made a few custom ground materials to better fit the environment that I'm referencing.




     To create the ground debris, I used a mix of meshes and a material that I painted under them.



Debris atlas sculpt and material.


Ground debris meshes.

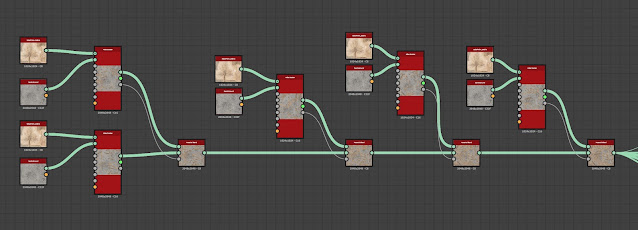

    Using the atlas that I made, I generated the underlying material in Substance Designer with the Atlas Scatter node.


    In this case, I basically layered multiple Atlas Scatters together. This gave me some control over the layering. For instance, on the lowest layer, I set height scale to .25 to keep it dark on the texture. On the highest layer, I set the height scale to 1 to make it as bright as possible.





    I used a similar technique for the leaves, but this time I only used two layers. To give it some depth, I made the bottom layer less saturated than the top.





    I think this small showcase scene is almost finished. Next I'm going to make a turtle sculpture and some mushrooms to place by the center tree. After that, I'm going to start on a full forest scene.

Monday, April 3, 2023

Weeks 8 and 9: Ivy and Final Scene

 For the last two weeks, I created the ivy atlas and combined everything into a final scene. To make the ivy atlas, I sculpted some leaves and then placed them on vines generated in SpeedTree.



Basically, I made a few different size variations, exported them all, assembled an atlas in Maya, and then brought them back into SpeedTree for baking.


Ivy clusters generated in SpeedTree.

Atlas assembled in Maya.

Final atlas baked in SpeedTree.

After baking the atlas, I cut out the cards and placed them around the tree mesh.



With the ivy ready, I then assembled a small scene with all the foliage.




Now that I've finished the scene, I'm going to work on some revisions and make a sculpture to go by the tree. After that, I plan to render the foliage assets in Marmoset and then build more of a complete forest scene. Overall, I've had a lot of fun working on this and I'm excited to improve on it and then start some other nature scenes!
